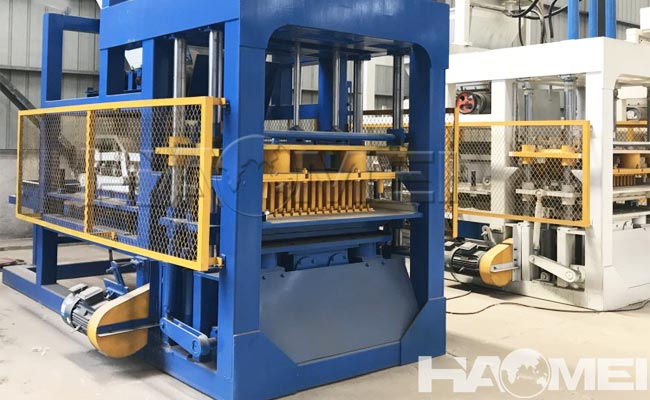

Automatic Concrete Hollow Block Making Machine
Aug 03, 2026
The automatic concrete hollow block making machine is a core process equipment for large-scale, non-fired building material production. Its technical precision directly determines the consistency of finished products, long-term operational stability, and return on investment efficiency. Unlike the extensive production of simple molding equipment, industrial-grade fully automatic block making machine models achieve triple optimization of capacity, quality, and operating costs through mature technologies such as directional vibration molding, precise material distribution, and hydraulic closed-loop control. It is currently the standard core equipment for mass production projects of blocks both domestically and internationally.
The core parameters of the molding process directly reflect the equipment's performance. Currently, the mainstream QT10-15 and QT12-15 models generally adopt vertical directional vibration technology, with vibration acceleration reaching 7-12g and rated excitation forces of 110kN and 150kN respectively. Combined with an adjustable vibration frequency of 3800-5000r/min, it can quickly remove air bubbles from inside the material, ensuring the density of the bricks. The typical molding cycle for standard 390×190×190mm hollow bricks is 18 seconds. A single shift of 8 hours for the QT10-15 model yields a stable production capacity of 14,000-16,000 bricks, while the QT12-15 model can reach 17,000-19,200 bricks per shift. The accompanying forced-feed system can complete mold cavity filling within 3-5 seconds, with a material uniformity error of ≤2%, avoiding common defects such as uneven brick density and insufficient material at the edges from the process source.
The quantifiable performance of finished product quality is the core value of the concrete hollow block making machine equipment. Hollow blocks produced using standardized processes have dimensional tolerances controlled within ±0.5mm and a porosity consistently maintained between 35% and 42%, conforming to the general standards for masonry structures in most countries worldwide. The finished products boast compressive strength ranging from C15 to C30, with a strength dispersion coefficient ≤8%, significantly lower than the over 15% dispersion level of semi-automated equipment. Water absorption at room temperature is ≤12%, and frost resistance reaches F25-F50 levels, making it suitable for engineering construction needs in temperate, subtropical, and some frigid zones. Strict molding process control ensures a consistently high finished product qualification rate of over 99.2%, substantially reducing production losses and rework costs.
The economic efficiency is the core competitive advantage of the automatic concrete hollow block making machine. In terms of energy efficiency, mainstream models are equipped with variable frequency hydraulic and servo drive configurations, with a unit product power consumption of approximately 2.4-2.7 kWh/m³, saving 15%-20% energy compared to traditional linear frequency models. In terms of reliability, the main frame is welded from Q355B steel plate and undergoes overall aging stress relief treatment. The core mold is made of Cr12MoV alloy steel and vacuum quenched. Under normal operating conditions, the mold's service life is ≥1.5 million cycles, the average mean time between failures (MTBF) is ≥6500 hours, and the annual effective uptime can reach over 90%. The entire fully automated production line requires only 3 operators to manage the entire process of batching, molding, and palletizing, with an average daily production capacity of approximately 4800 pieces per operator, increasing production efficiency by more than 3 times compared to a semi-automatic production line.
Flexible adaptability further broadens the application scope. The automatic concrete hollow block making machine supports rapid mold replacement, with a single mold replacement and debugging time of ≤2 hours. It is compatible with more than 10 types of products, including porous bricks, paving bricks, and slope protection bricks. On the raw material side, it can accommodate sand and gravel aggregates with a particle size ≤15mm, and the maximum blending amount of solid waste such as fly ash, slag, and recycled construction waste aggregates can reach 80%, fully utilizing low-priced raw material resources in various regions, further reducing production costs, and adapting to the market demands of different regions.
Overall, fully automatic concrete hollow block making machine have become the mainstream technology solution in the global block production industry due to their precise process control, stable quality output, and excellent full-cycle economic efficiency, providing efficient and low-cost building material production support for infrastructure projects around the world.
