China Concrete Hollow Block Making Machine

After more than 30 years of industrial accumulation and technological iteration, China concrete hollow block making machines have completed a leap from "following the cost-effectiveness trend" to "achieving international technological parity," becoming a core supplier in the global building materials equipment sector. Relying on a complete heavy industry chain cluster and process innovation capabilities, China hollow concrete block making machines have developed differentiated advantages in production efficiency, raw material adaptability, intelligent level, and overall cost. By 2025, China's global shipment share exceeded 63%, and its market share in countries along the Belt and Road Initiative reached 64%, deeply supporting the equipment needs of global infrastructure and residential construction.

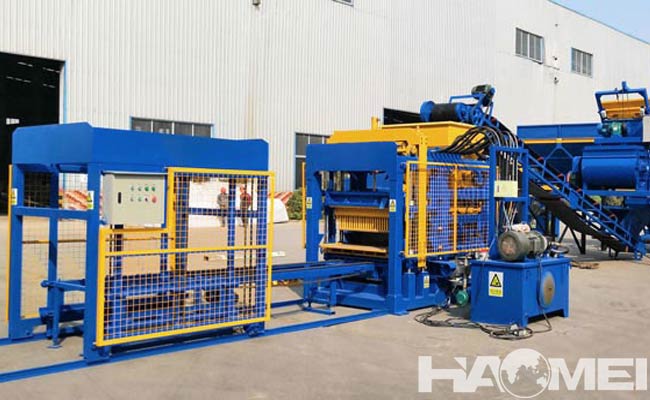

Currently, the mainstream export model is the QT series fully automatic hydraulic hollow block making machine, covering all scenarios from small-to-medium-sized mass production to large-scale production. The QT10-15 model can form 10 standard hollow blocks (390×190×190mm) per mold, with a forming cycle of 15-20 seconds and an 8-hour production capacity of 14,000-22,000 blocks. The higher-specification QT12-15 model produces 12 blocks per mold, with a maximum hourly production capacity of 5,200 blocks, suitable for block factories with a daily production capacity of over 20,000 blocks. The concrete hollow block making machine generally adopts a composite molding process of high-frequency vibration and hydraulic compaction, with an excitation frequency of 4800-5100 r/min and a stable hydraulic system working pressure of 16-22 MPa. The finished blocks have uniform density, compressive strength covering the range of 10-35 MPa, and a finished product qualification rate consistently above 99.6%. The core mold is made of wear-resistant alloy steel and vacuum quenched, with a service life of over 1.8 million cycles. It supports quick changeover and is compatible with more than ten types of products, including porous bricks, paving bricks, and slope protection bricks. This multi-functional feature significantly reduces the marginal cost of production for customers.

In terms of technology, China concrete hollow block making machines have formed a mature intelligent configuration system. 76.2% of newly sold equipment comes standard with a PLC+HMI intelligent control system, enabling production formula storage, one-button start/stop, fault self-diagnosis, and real-time monitoring of operating data. Some high-end models integrate servo hydraulic systems and AI visual quality inspection, resulting in an 18% reduction in energy consumption per unit capacity compared to five years ago. Addressing the differences in raw material conditions in overseas markets, domestic manufacturers have specifically optimized the material feeding mechanism and vibration parameters. The equipment can stably process solid waste raw materials such as fly ash, slag, and recycled aggregates from construction waste, perfectly adapting to the complex raw material composition and high impurity content production scenarios in developing countries, combining environmental benefits with raw material cost advantages.

The improved export service system further strengthens the global competitiveness of China concrete hollow block making machine. Leading companies generally provide full-process services from plant planning, equipment installation and commissioning, operator training to long-term spare parts supply. Most products have passed international certifications such as ISO9001 and CE, and can flexibly adapt to voltage standards, environmental requirements, and building codes in different regions around the world. Compared to similar equipment in Europe and the United States, China concrete hollow block making machine models achieve over 90% of the performance at approximately 40% of the price, while also possessing greater adaptability to various working conditions, making them the mainstream choice in emerging markets such as Southeast Asia, Africa, and Latin America.

Overall, China concrete hollow block making machines are continuously evolving towards higher intelligence, lower energy consumption, and full life-cycle service. Leveraging its supply chain advantages and rapid technological iteration capabilities, China continues to solidify its core position in the global market, providing reliable equipment support for global green building materials production and infrastructure implementation.
