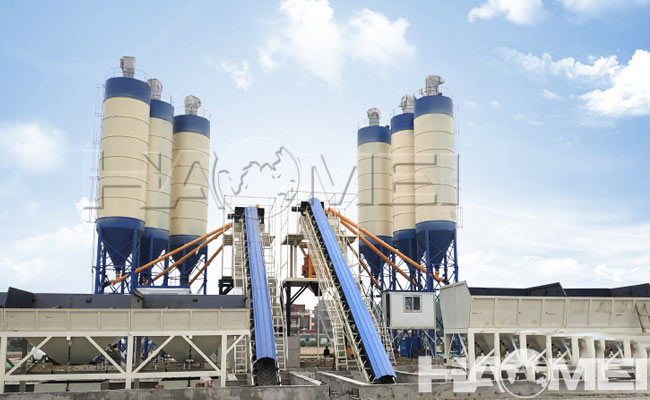

Ready Mix Plant For Commercial Concrete

For commercial concrete operators, a ready mix concrete plant is not merely a temporary construction facility, but a core production asset supporting an operational cycle of 3 to 10 years. Unlike engineering concrete mixing plants that focus on short-term production and scenario adaptation, the core value of ready mix plants lies in their long-term stable quality consistency, continuously controllable production capacity, compliant and environmentally friendly operational attributes, and cost competitiveness throughout the entire lifecycle. Haomei Machinery's HZS series ready mix concrete plants, launched for the overseas commercial concrete market, covers the mainstream capacity range of 120-240 m³/h and is a mature solution refined around the core requirements of commercial concrete operation.



The stability of quality control is the foundation of a ready mix concrete plant. Commercial concrete is supplied in standardized batches according to grade specifications; the batch strength variation directly affects customer reputation, material waste, and after-sales risks. Haomei commercial ready mix concrete plants employ an independent multi-stage weighing and metering system. The dynamic metering error for aggregates is ≤±2%, and the metering error for powder and liquid materials such as cement, fly ash, and admixtures is ≤±1%. Combined with a fully automated batch-by-batch calibration mechanism, this ensures precise and consistent batch proportions for each batch. Actual test data shows that the standard deviation of the 28-day compressive strength of C30-C50 grade concrete produced by the entire system can be stably controlled within 3.0 MPa. The homogeneity index fully complies with the EN 206 international concrete standard, meeting the quality requirements of various commercial orders in municipal, construction, and bridge industries, significantly reducing the rate of defective products and compensation costs.

Continuous production capacity directly determines the revenue ceiling of a ready mix concrete plant. Demand for ready mix concrete fluctuates greatly, with peak morning supply and large-order delivery requiring extremely high continuous operation capabilities from the equipment. Taking the HZS180 concrete batching plant as an example, it comes standard with a JS3000 twin-shaft forced-action main unit, producing 3000L of material per batch, with a standard mixing cycle of 60 seconds and a theoretical capacity of 180m³/h. Combined with a four-bin synchronous aggregate batching system and a steep-angle belt conveyor structure, it ensures uninterrupted material supply. During continuous 8-hour operation, the actual production capacity can reach 85%-90% of the theoretical value, with a designed annual capacity of approximately 150,000-200,000 cubic meters per plant. The equipment adopts a heavy-duty steel structure and a reinforced transmission system, supporting 24-hour shift operation with an annual attendance rate consistently above 95%. It can simultaneously support the regular material supply needs of multiple construction sites, fully releasing the benefits of its production capacity.

Environmental compliance and optimized operating costs determine the long-term profitability of the ready mix concrete plant. Commercial concrete mixing plants generally face strict environmental regulations. This series comes standard with a pulse-jet baghouse central dust collection system, with dust emission concentration ≤30mg/m³. It features a fully enclosed conveyor corridor and noise reduction design, with noise levels at the plant boundary ≤75dB, complying with EU EN 12629 environmental and safety standards, ensuring smooth approval for local plant construction. In terms of energy consumption, the entire machine uses an energy-saving motor and optimized transmission structure, with a comprehensive power consumption of approximately 12-14kWh per cubic meter of concrete, about 10% lower than conventional models in the industry. Core wear-resistant components are made of thickened high-manganese steel, with liners and blades having a service life exceeding 8000 hours. The procurement cost of vulnerable parts is more than 40% lower than similar models in Europe and America. Equipped with a fully automatic intelligent control system, a single plant requires only 1-2 operators to complete the entire production process, significantly reducing labor cost pressures in overseas markets.

All our ready mix plant for commercial concrete are CE certified and support multiple voltage standards including 380V/415V/440V. We can flexibly configure the number of cement silos, unloading height, and environmental protection solutions according to the customer's site size and production capacity plan. For overseas commercial concrete operators, a set of reliable ready mix concrete plant is essentially a stable profit base. With its mature quality control system, reliable mass production capabilities, and controllable operating costs, Haomei provides global ready mix concrete customers with cost-effective plant construction solutions, helping them build a long-term competitive advantage in their local markets.
