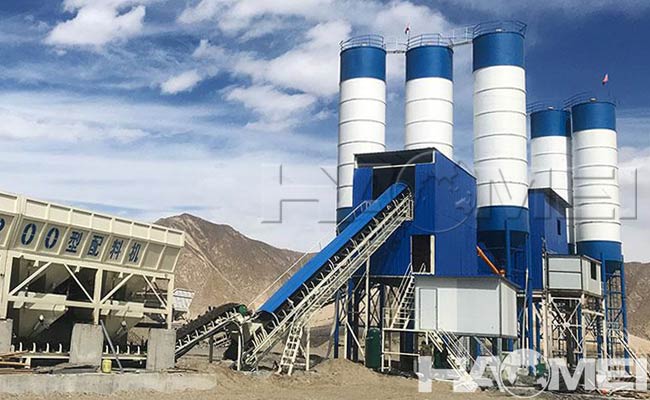

Batching Plant For Ready Mixed Concrete

The batching plant for ready mixed concrete is a combined device used to mix concrete in a centralized manner, also known as a precast concrete plant. Because of its high degree of mechanization and automation, the productivity is also high, and it can ensure the quality of concrete and save cement. Ready mixed concrete batching plant is often used in large and medium-sized water conservancy, electric power, and bridge projects with large concrete works, long construction periods, and concentrated construction sites. With the development of municipal construction, the use of centralized mixing, ready mix concrete plant has great advantages, and thus has been rapidly developed, and create conditions for the promotion of concrete pumping construction and the realization of the combined operation of mixing, conveying, and pouring machinery.



The model of batching plant for ready mixed concrete ate HZS90, HZS120, HZS180 concrete mixing plants are within the scope of medium and large-sized concrete mixing plants. Large concrete mixing plants have a high investment quota and cover a wide area. They need about 20- 50 acres of land. Users who invest in such large concrete mixing plants generally need to have a strong economic strength. The ready mix concrete plant all adopt belt feeding method, which covers a large area and requires more investment.

HZS90 concrete mixing plant: The theoretical output is 90m³/hour, the overall dimensions (mm) (length X width X height): 51093x19100x21600 (mm), the mixing host uses JS1500 twin-shaft concrete mixer, equipped with PLD2400 concrete batching machine, belt conveyor, automatic centralized control system, etc., are more choices among ready mix concrete plant and engineering concrete batching plant.

HZS120 concrete mixing plant: The theoretical output volume is 120m³/hour, the external dimensions (mm) (length X width X height): 55885x20200x21600 (mm), the whole set of concrete mixing plant equipment covers an area of about 65m*30m, and the output is 120m³ per hour for medium-sized mixing plants, the return on investment is still very high.

HZS180 batching plant for ready mixed concrete: The theoretical output is 180m³/hour, the external dimensions (mm) (length X width X height): 59811x20660x23700 (mm), using Sicoma JS3000 concrete mixer, can use two-sided or top-floor concrete mixing station.
