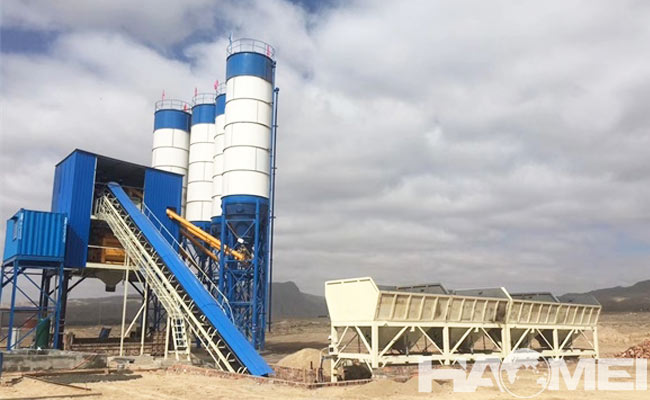

Belt Conveyor Concrete Batching Plant

Belt conveyor concrete batching plant is a kind of equipment that combines concrete production and conveying, which is usually used in large-scale engineering projects, construction sites and concrete production enterprises. The equipment conveys raw materials (such as sand and gravel, etc.) to the concrete mixer for mixing through belt conveyor, which has the advantages of high efficiency, continuity and automation. The mixing productivity of a belt concrete batching plant is above 60m3/h, for the concrete batching plant with capacity lower than 60m3/h, the charging method is skip hopper type.

The main components of belt conveyor concrete batching plant:
1. Mixer: it is used to mix various raw materials into concrete, common ones are forced mixer and self-fall mixer.
2. Belt conveyor: to transport raw materials to the mixer, usually driven by motor, with different belt widths and lengths.
3. Raw material storage hopper: used to store different kinds of raw materials, such as cement, sand, gravel, etc., usually with multiple storage bins.
4. Control system: to realize automatic operation, can be set according to the demand of mixing ratio, production quantity, etc..
5. Cement metering system: used to accurately measure the amount of cement.
6. Batching system: to ensure that all kinds of raw materials are batched according to the set ratio.

The price of belt conveyor concrete batching plant varies according to the production capacity, model, configuration and other factors, usually ranging from several hundred thousand to several million dollars. The specific price can refer to the following range:
- Medium-sized belt conveyor concrete batching plant (production capacity in 50-100 cubic meters/hour): about 80,000-150,000 dollars.
- Large belt conveyor concrete batching plant (production capacity in more than 100 cubic meters/hour): more than 200,000 dollars.

Suggestions for selection of belt conveyor concrete batching plant:
1. Understand the demand: choose the right model and specification according to the project scale and production demand.
2. Brand and quality: choose a famous brand to ensure equipment quality and after-sales service.
3. Field visit: If possible, visit the manufacturer on the spot to understand the production process and quality of the equipment.
4. Compare quotes: ask for quotes from several suppliers to compare prices and services.
