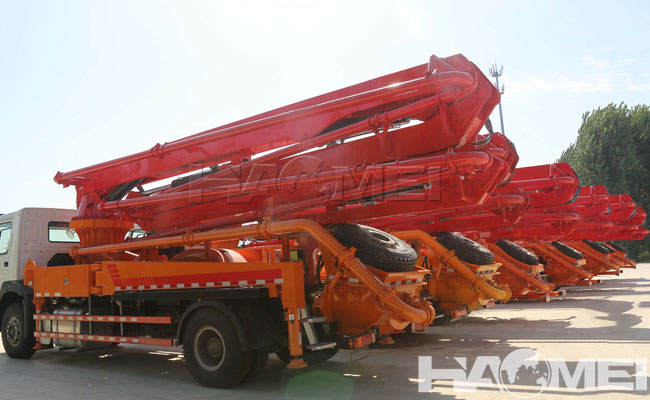

Boom Concrete Pump Truck

In modern times, you can find buildings tens of meters or even hundreds of meters high in any city, and new tall buildings rise every day. During the construction of this city, tower cranes and concrete boom pump trucks played an important role. Boom concrete pump truck is a machine that uses pressure to continuously transport concrete along pipelines. It can transport concrete horizontally or vertically to narrow environments, or transport concrete to buildings with dozens of floors. It plays a very important role in the construction of construction projects and water conservancy projects.

In our impression, the boom concrete pump truck is a stupid construction machine, but in fact it is a very delicate equipment. The boom is a key component of a concrete pump truck. It not only has to extend to a height of tens of meters, but also bears the huge pressure when pumping concrete. The strength of the steel plate used to manufacture the boom is higher than 600 MPa, which is equivalent to two 600 kg cows stand on a thumbnail. Therefore, every time one meter of length is added to the boom concrete pump truck, the requirements for the material strength of the boom are more than one level higher.

The core components of the concrete boom pump truck are its pumping system and hydraulic system. The pumping system is the actuator of the concrete pump truck. It is used to continuously transport the concrete along the pipeline to the pouring site. It is mainly composed of a pumping mechanism, a lubrication mechanism and a hopper. The hydraulic system, by changing the pressure to achieve energy conversion and increase the force, is used as the power of the pumping system and the power to expand and fold the boom. It is mainly composed of an oil pump, a fuel tank, and a boom pump.

The boom concrete pump truck also needs a high-precision control system to control the direction of the boom, the speed of unfolding (folding), and to ensure the high stability of the boom. Moreover, some core components of high-end boom pump trucks need to be imported from other industry giants.
