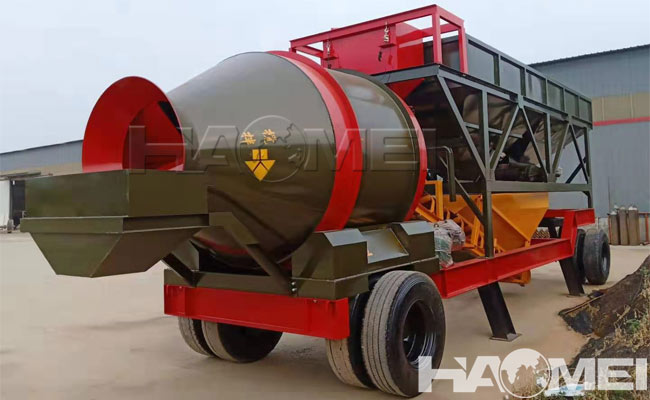

The YHZM35 drum mobile concrete batching plant integrates dosing, aggregate and cement metering, lifting, mixing as well as water supply, pneumatic and electric controls in one mobile unit, making it very easy and fast to move around.

Drum type mobile concrete batching plant equipment integrating batching, weighing, conveying, mixing, discharging and automatic control system. Its production process and operation method are the same as that of stationary concrete mixing plant, but it has the advantages of flexible movement and easy disassembly. When moving the construction site, except for screw conveyor and cement silo, other parts need not be disassembled.



General Parameters


Model		YHZM35
Capacity		35m3/h
Concrete mixer		JZM750
Cycle time		1.5 minutes
Weighing accuracy	Aggregate	±2%
	Cement	±1%
	Water	±1%
	additive	±1%



Detailed specification

1. Concrete mixer

Name	Specification
Model	JZM750 drum mixer
Capacity	0.75m3/batch
Motor power	5.5kw*2
Mixing time	40s
Discharging height	1300mm; If using concrete transit mixer to collect concrete，we can make a slope with the height of 3000mm to enable it to collect concrete.

2.  Aggregate batcher

Name	Specification
Model	PLD1200
Volume of storage bin	4.5m3*3pcs
Weighing sensor	1000kg*2pcs
Cylinder	100*250*1pcs
Motor power	4kw*3pcs
Belt conveyor size	500*10530mm*1 ,600*8450mm*1,500*4230mm*1
Loading height	3100mm
Thickness of storage bin steel plate	3mm

3.  Scales

Name		Specification
Cement scale	Volume of cement storage bin	0.6m3
	Weighing accuracy	+/-1%
	Sensor	500kg*3pcs
Water scale	Volume of water storage bin	0.4m3
	Weighing accuracy	+/-1%
	Sensor	300kg*3
	Water pump power	1.5kw
Additive scale	Volume of additive storage bin	0.05m3
	Weighing accuracy	+/-1%
	Sensor	50kg*1
	Additive pump power	1.1kw

4.  Cement debagger

Name	Specification
Cement Hopper	1
Screw Conveyor	Φ219

5.  Chassis

Name	Specification
Qty.	1 pcs
Size	11100mm*2000mm*780mm
Tyre model	1000mm

6.  Control system

Name	Specification
Electrical elements brand	CHNT / DELIXI
Control console

Drawing:
