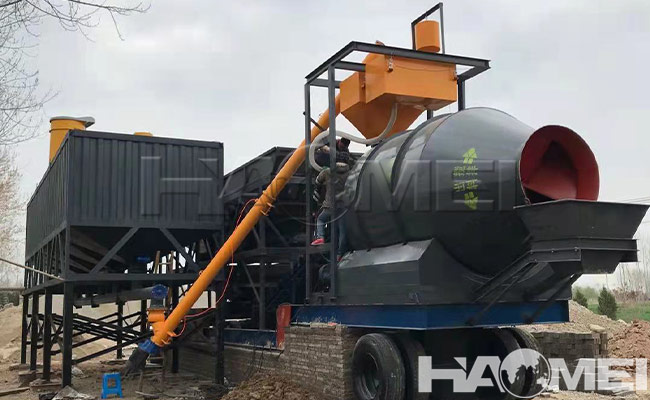

The YHZM75 drum mobile concrete batching plant is a large model of mobile batching plant with drum mixer.
Features of JZM Series Mobile Concrete Batching Plant：
1. Aggregate batching and transferring is automatic and precise;
2. Concrete mixing quality is observable, drum clockwise rotating for mixing, and anti-clockwise rotating for discharging;
3. The whole plant chassis can be moved easily, don't need to be separated and assembled;
4. This plant is designed to work without foundation, even cooperate working with horizontal cement silo;
5. Compared with twin-shaft concrete mixer plant, this concrete batching plant is cheap and save the shipments cost.

General Parameters


Model		YHZM75
Capacity		75m3/h
Concrete mixer		JZM1500
Cycle time		1.5 minutes
Weighing accuracy	Aggregate	±2%
	Cement	±1%
	Water	±1%
	additive	±1%


Detailed configuration parameters

1. Concrete mixer

Model	JZM1500
Feeding capacity	1600L
Discharge capacity	1000L
Mixing capacity	60m³/h
Mixing motor power	11kw*2
Water power	3kw
Mixing time	20s
Discharge height (working condition)	1185mm

2. Aggregate batcher

Model	PLD1600-3
Storage hopper Capacity	7m³*3
Weighing hopper capacity	1600L
Motor power	4kw*3
Sand bin vibration motor power	0.37kw*1
Sensor	1000kg*3pull
Belt conveyor	500*10500mm*1 ,600*8500mm*1,500*4200mm*1
Feeding height (working condition)	3290mm


3.  Weighing Scales

Cement weighing system	Volume of cement weighing hopper	0.6m³
	Pneumatic butterfly valve	￠300
	Sensor	500kg*3
Water weighing system	Volume of water weighing bucket	0.4m³
	Water Pump power	1.5kw
	Pneumatic butterfly valve	￠80
	Sensor	300kg*3
Additive weighing system	Volume of additive weighing bucket	0.03m³
	Pneumatic valve	￠50
	Sensor	50kg*1


4. Pneumatic system

Air compressor	0.6m³
cylinder	AKS

5.  Control system

Strong and weak current cabinet

Integrated strong and weak current cabinet

6.  Mobile chassis

Size of mixing plant chassis	10.92M*2M
Tyre type and quantity	￠1100mm*8

Drawing:
