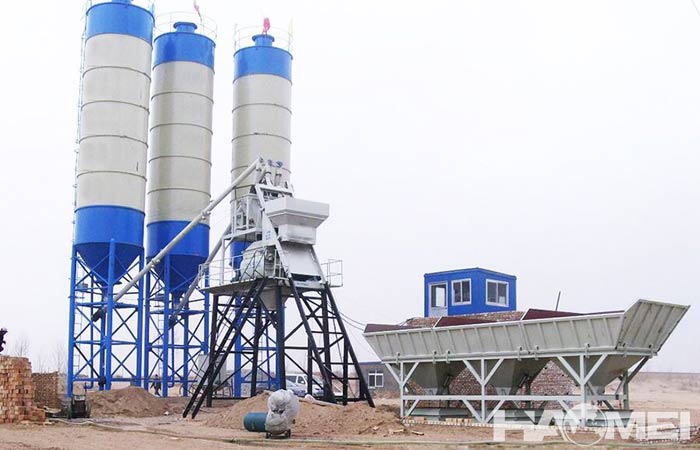

Engineering Concrete Batching Plant

An engineering concrete batching plant is a facility used to produce concrete, which is widely used in construction, road, bridge and other engineering projects. It produces concrete that meets the requirements of the project by mixing raw materials such as cement, sand, gravel, additives and water in a certain proportion.

The model number of engineering concrete batching plant usually starts with “HZS”, followed by a number indicating its hourly concrete production capacity (in cubic meters). The following are some common HZS models and their corresponding production capacity:
HZS25: 25 cubic meters per hour
HZS35: 35 cubic meters/hour
HZS50: 50 cubic meters/hour
HZS60: 60 cubic meters/hour
HZS75: 75 cubic meters/hour
HZS90: 90 cubic meters/hour
HZS100: 100 cubic meters/hour
HZS120: 120 cubic meters/hour
HZS150: 150 cubic meters/hour
HZS180: 180 cubic meters/hour
HZS240: 240 cubic meters/hour
These models of concrete batching plants are widely used in projects of different scales, and the selection of the right model can be decided according to the demand of the project, construction period and budget.

Main components of engineering concrete batching plant:
- Raw material storage system: including cement storage silo, aggregate storage hopper, etc.
- Batching system: used to accurately proportion all kinds of raw materials.
- Mixing system: mixing all kinds of raw materials through the mixer to form concrete.
- Control system: Automatically control the whole mixing process to ensure the production efficiency and concrete quality.
- Discharging system: conveying the mixed concrete to the transportation vehicle or construction site.

The working principle of engineering concrete batching plant is to use cement as the binder material, and weigh the fly ash, cement, sand and some powder and fine materials through the batching machine according to the proportion test, after the weighing is completed, the operator will start the sand and stone belt motor to send the weighed ingredients to the metering hopper, and then add the additives and water to be mixed in the mixer to achieve the required mixing effect, then the ingredients will be sent into the opened concrete tanker and conveyed out.

Main functions of engineering concrete batching plant:
- Efficient production: able to produce large quantities of concrete quickly to meet the needs of the project.
- Quality control: Ensure stable quality of concrete through precise proportioning and automatic control.
- Flexibility: the concrete formula can be adjusted according to different project requirements.

Engineering concrete batching plant is widely used in:
- Urban infrastructure construction (such as roads, bridges, tunnels, etc.)
- Real estate development (e.g. residential, commercial buildings, etc.)
- Industrial projects (e.g. factories, warehouses, etc.)
- Water conservancy projects (e.g. dams, irrigation facilities, etc.)
